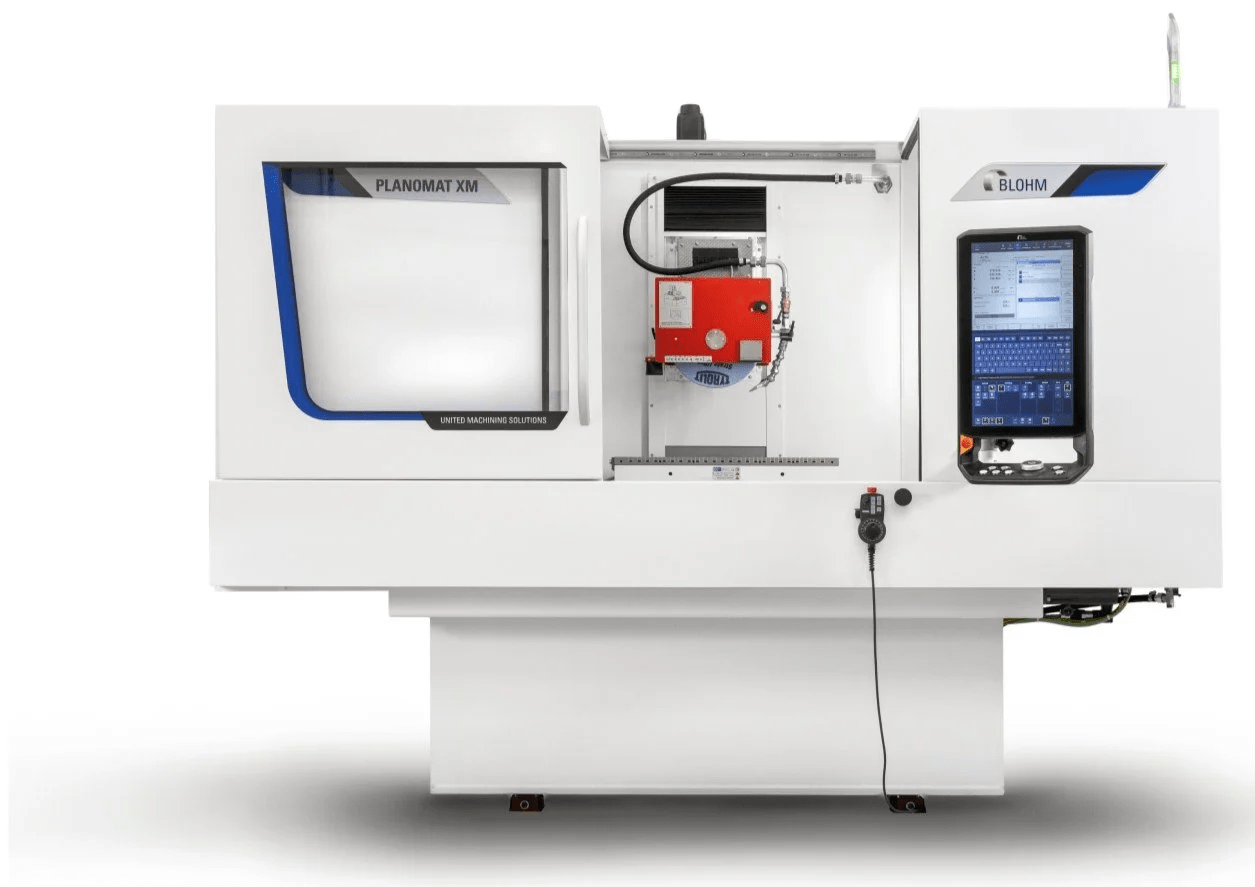

PLANOMAT XM
More About The PLANOMAT XM
Repeatability and precision have been your and our goal for over 100 years
Versatility with flexible software and intuitive operation
High availability with worldwide service support – remote and on-site

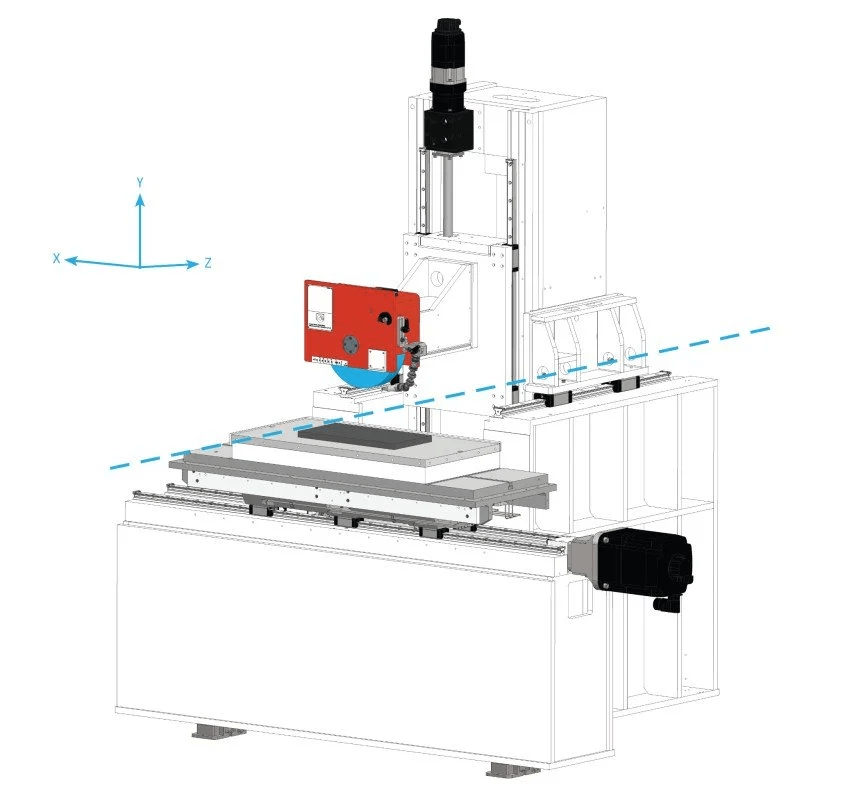

The unique 3-leg design ensures stability and geometric accuracy throughout its service life. Highest repeatability thanks to the heavily ribbed construction with a machine weight of 5 tons.Highest repeatability of workpiece accuracy even with fluctuating ambient temperatures
Highest repeatability over the lifetime of the machine
PLANOMAT’s unique raised of the Z-guides drastically minimizes the bending force on the column for maximum rigidityHigher flatness across the entire workpiece
Reduction of edge chipping on the workpiece
Visual improvement of the workpiece through consistent grinding pattern
Working area 400 x 800 mm
Spindle distance to table 600 mm
Travel strokeX-axis 900 mm
Y-axis 500 mm
Z-axis 360 mm
Siemens Sinumerik One control
BLOHM operator guidance with grinding technologiesPendulum grinding
Creed feed grinding
Faces grinding
Profile grinding
Linear guide ways in all axesLength measuring system in Y-/Z-axis
Accuracy resolution 0.001 mm
Ground ball screws in all axesX-axis speed 30,000 mm/min
Y/Z axis speed 3,750 mm/min
Grinding spindleGrinding spindle drive 8 kW
Grinding wheel peripheral speed 63 m/s
Grinding wheel dimensions 300 x 50 x 76.2 mm
Table load max. 800 kg
Compact machine designElectrical cabinet integrated in the machine
Large sliding door for excellent accessibility to the working area
Maintenance-friendly machine designComplete housing in welded design to prevent leaks
Maintenance doors on the right and left side of the work area paneling
No open cable routing
No cable routing through the machine bed
C.O.R.E. Panel
Fully modular system
Design characteristics: very high rigidity, minimum vibrations, minimized thermal influences
Precison linear guideways
High quality, recirculating ballscrews
Option: linear direct drive (X-axis)
C.O.R.E. OS operating system
Optimal operator guidance
Programming with menu-guided grinding and dressing cycles
UNITED GRINDING Digital Solutions™
Graphical user interface
Quick programme creation using drag and drop
Quick adjustment of grinding and dressing cycles using parameters
Standard grinding cycles for all flexible grinding tasks, extended grinding cycles Interpolation and profile grinding with Grips Profile
Comprehensive tool management with 50 grinding wheels and 15 dressing tools
Deep grinding at angles in the X/Y plane with a single cut
Deep grinding of convex or concave radii
Path-controlled deep grinding X/Y and path-controlled pendulum grinding in Y/Z (option Grips Profile required for this)
GripsProfile software is installed on the machine control system. Additional use on an external PC is also possible with the software dongle.
17 predefined standard contours
Import of DXF contours
CAD module for free geometries
- Selection of various dressers and pre-dressers
Dressing logic for contour, position and axis-parallel dressing
Generation of path grinding programmes in the X/Y or Y/Z direction
Automatic generation of the dressing programme
Simulation of contour creation with automatic collision checking

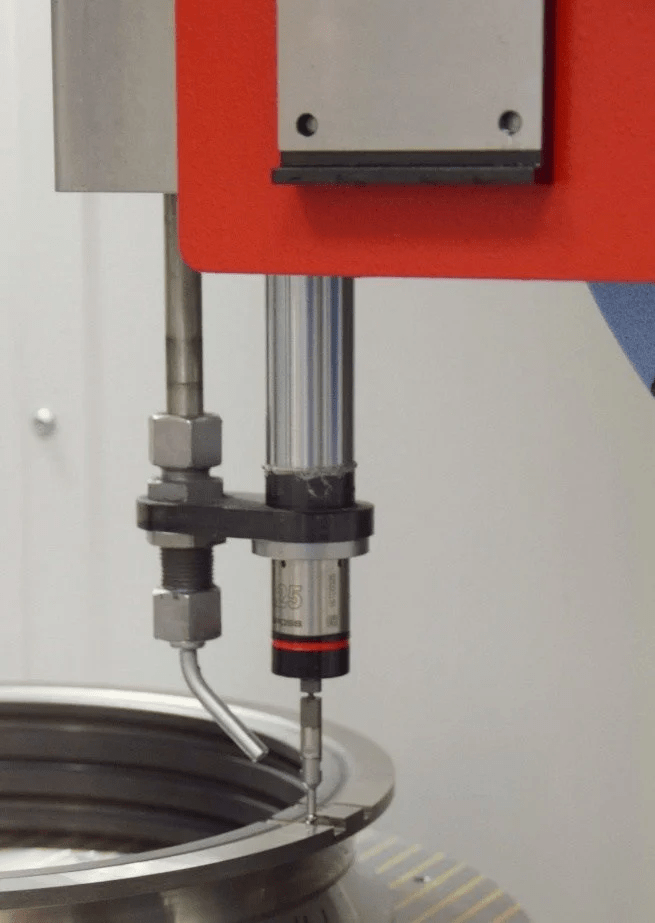

Mounted on the left side of the disc guard with a pneumatic stroke of 300 mm
Cycles for workpiece detection and pre-positioning in the X, Y and Z axesAutomated processes in the area of multiple clamping
Reliable detection of workpiece position
Automatic grinding of workpieces to final height
A wide variety of measuring tasks possible
